Jupiter V-Band Coupling / Clamps are used to join piping, tubing, various gas or liquid tracks, closures, separators, regulators, filters containers, Turbo chargers, Engine joints etc.

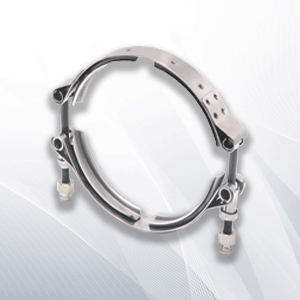

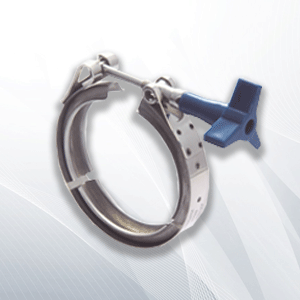

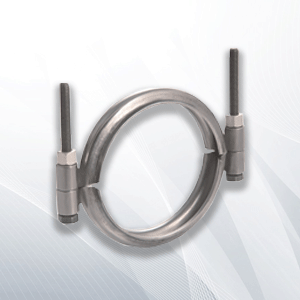

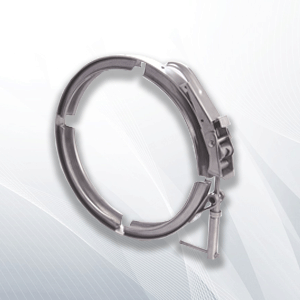

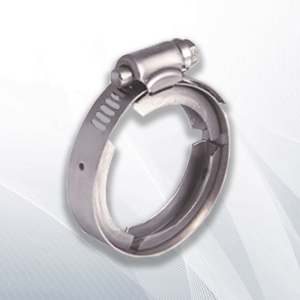

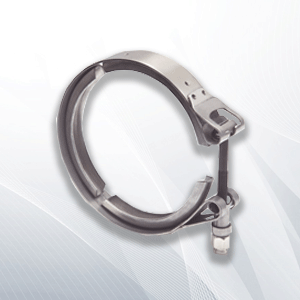

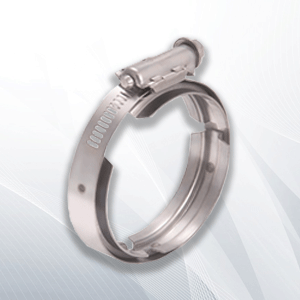

We have designed and developed numerous designs as per customer’s specific application requirements. Various designs of latches viz. quick release latch, toggle latch is also available.

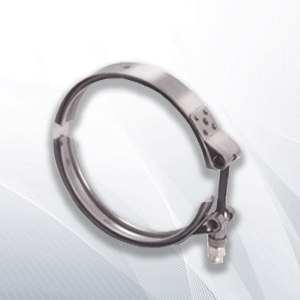

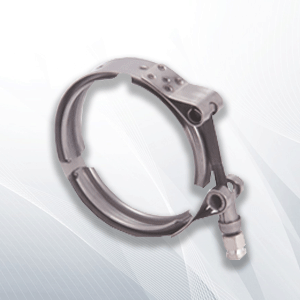

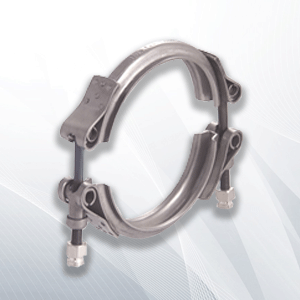

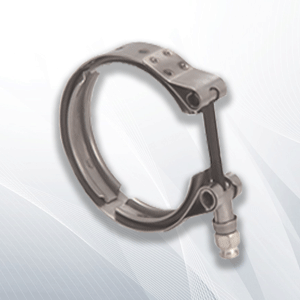

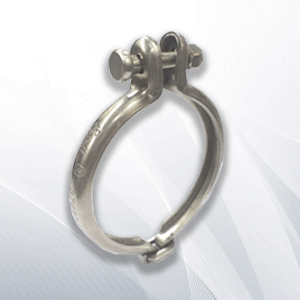

This clamp consists of T-Bolt, Nut, Trunnion and Band with V-shaped retainers spot welded to inner band which wedges the flanges together. The shape of the clamp, T-bolt size, No. of V-segments, retainer thickness, material of the components is determined based on the application.

From the assembly shown in sketch the tapered inners of the V-segments are mounted over their respective matching tapers of the pair of flanges of the pipe joints.

The tangential pull created by applying torque by turn of nut causes uniform radial force Fr all around. This causes wedging action force Fw along the tapered area of the flange as its perpendicular. The Fw in turn has its resolved component force Fx along the axis of the flanges or pipes which effectively serves in firm and uniform fitting of the two flanges along their faces. The retainer applies a uniform closing force around the circumference of the flanges during and after tightening.
